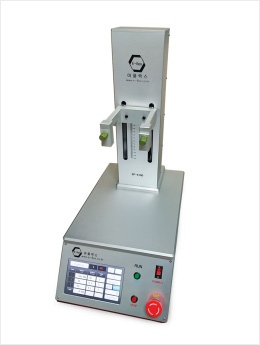

| MODEL : Tabletop Dip Coater TD-0502 |
 |
This machine is designed mainly for test coating. This machine dips panels in the ink tank
and extracts the panel and a thin film of ink is formed on both side of the panel
simultaneously.
* Material : Aluminum(A505), Stainless(SUS304)
* Dimension : Body - 600W x 1270H x 400Lmm, 30kg
Control box - 260W x 165H x 300Lmm, 10kg
* Panel max. size : 400mm x 500mm
* Extracting speed : 1mm/sec ~ 30mm/sec(Possible to set at 1mm/sec)
* Stroke : 505mm
* Utility Power : 100V, 250VA
|
|
|
|
|
|
