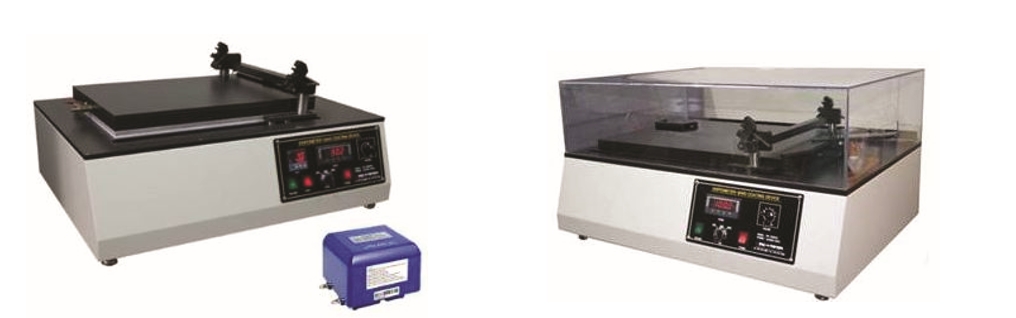

* Sample plate size : 300㎜ x 450㎜
* Available coating size : A4 size(210㎜ x 297㎜)
* Stoke : Max. 300㎜
* Speed : 10 ~ 100 ㎜/sec.
* Control & Display : Variable by volume switch, digital display
* Dimensions : 700㎜ x 500㎜ x 300㎜, 약 40㎏
* Electrical power : AC220, 50/60㎐, 1Ø

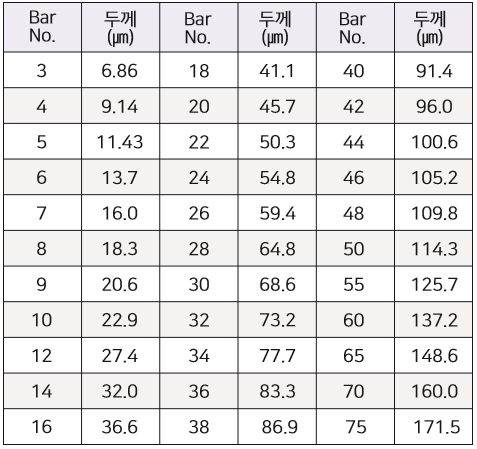

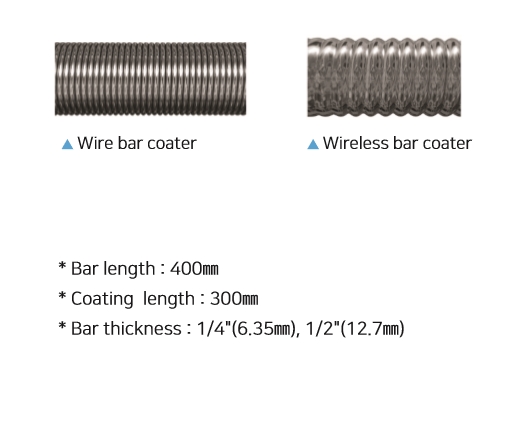

* Wire Bar Coater, Wireless Bar Coater

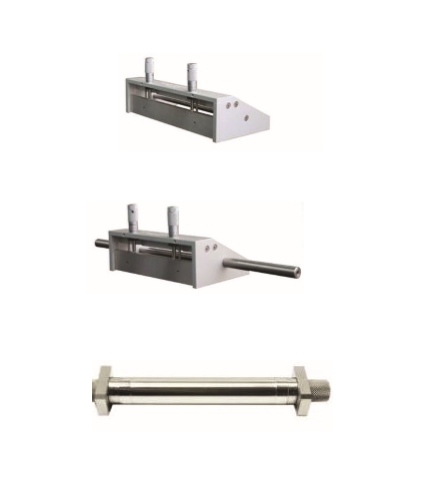

* Baker Applicator, Micro Adjustable Applicator
* Vacuum plate / Heat Temperature(Max. 200℃)
* Protection Cover, Water Circulation
